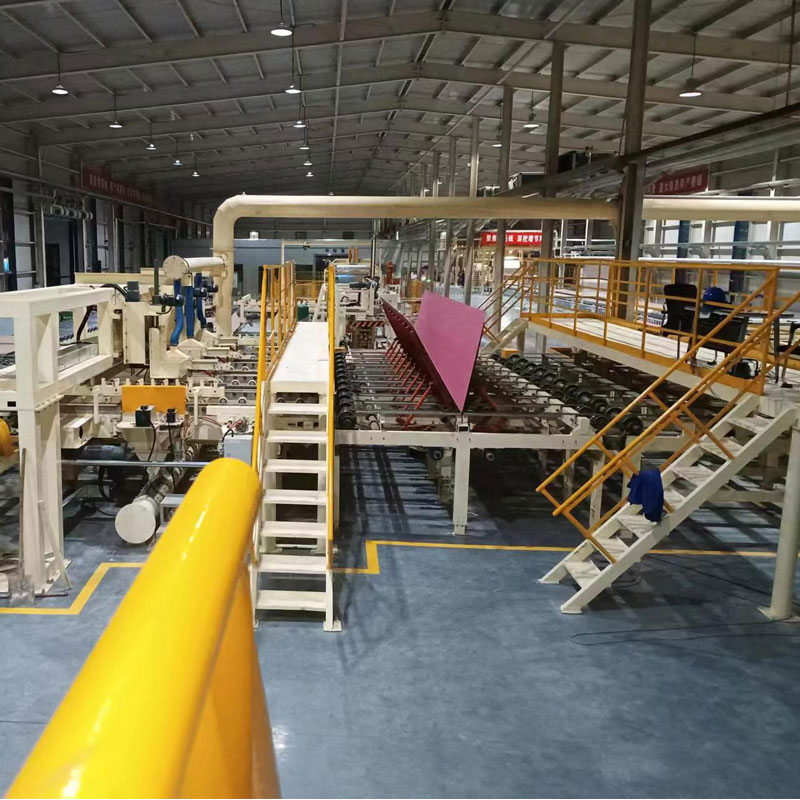

Plasterboard Machine

Technical parameters of plaster board

1. Paper loading part: the upper and lower paper are equipped with automatic paper receiving machine, RE automatic deviation correction device and sizing device. The lower paper is equipped with scoring device, and a 1.5m gap is reserved between the automatic deviation correction device and the scoring machine to facilitate the installation of QR code roller printer. The upper and lower paper system is equipped with free paper guide rollers as required. (aluminum roller, dynamic balance G2.5, surace oxidation treatment, hardness HV300, runout 0.1mm)

2. The gypsum powder metering belt scale adopts Chengde Chengxin brand; The dry and wet auxiliary materials of the batching part are loaded by the lower clearance single beam electric crane, with a lifting weight of 2T, the distance between the electric crane rails is about 15m (finally determined after the workshop structure design), and a single batching workshop with a span of 15m is set. The batching part is uniformly equipped with a bag filter. Among them, the screw pump is Netzsch, and the foaming agent is homogeneous pump.The wet material pump set system of the batching station is arranged close to the mixer, and there are wet auxiliary material addition tanks, which are placed on the platform of the batching workshop; 2 clean water tanks (including mixing system, with a volume of 22m3 each). A pipeline pump (stainless steel impeller) communication system is set beteen the two clean water tanks; The tank body of the wet material system is made of 304 stainless steel.
