Automatic Wall Plaster Machine
Automatic wall plaster machine is used to Produce Plaster powder. Firstly please see the Automatic wall plaster machine Introduction.
The natural Plaster powder includes anhydrous Plaster and CaS04.2H2O, if you want to commercialize the Plaster powder, you should adopt the CaS04.2H2O, after removing part of water by heating, it will become CaS04.1/2 H20.CaS04.1/2 H20 is the final product which you can use it to produce Plaster board other Plaster product. After calcining, CaSO4.1/2H2O is widely used in paper faced Plaster board and Plaster block and painting Plaster powder and model.
Product Details

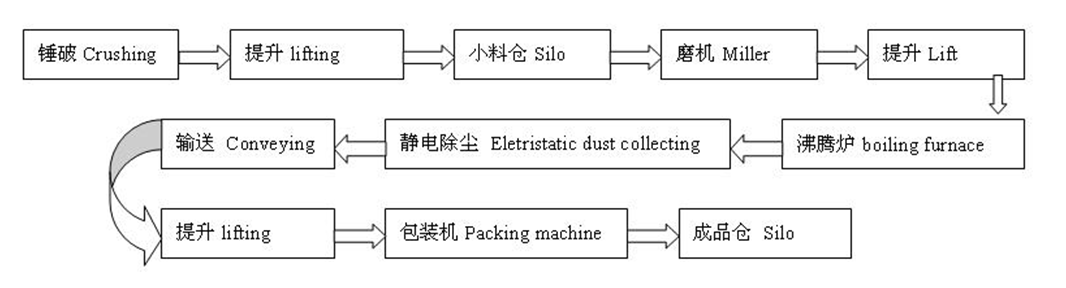

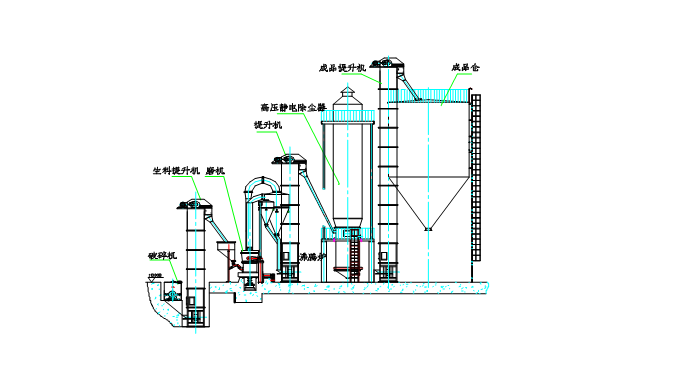

Automatic wall plaster machine Technology
Automatic wall plaster machine Capacity List
Capacity/T | Ton/hour | Raw gypsum rock consumption T/year | Boiling furnace size |
30,000 | 4.2 | 36,000 | 4.5M×1.2M×1.4M |
50,000 | 6.9 | 60,000 | 4.5M×1.4M×1.6M |
60,000 | 8.3 | 72,000 | 4.5M×1.6M×1.8M |
80,000 | 11.11 | 96,000 | 4.5M×1.8M×2.0M |
100,000 | 13.88 | 120,000 | 4.5 M×2.0 M×2.2 M |
150,000 |
| 180,000 | 4.5 M×2.2 M×2.4 M |
200,000 | 27.77 | 240,000 | 4.5 M×2.4 M×2.6 M |
20.83
Product relevant parameter (GB9776-88《constructional gypsum》which comes from the Gypsum Powder Manufacturing Machine.
1. The product quality :reach or surpass national standard（GB9776-88）
2. Fineness: ≥80 mesh
3. Flexural strengh (have directional relationship with raw material) : ≥1.8Mpa
Compressive strengh: ≥3.0Mpa。
4. main component
contents of CaSO4 1/2 H2O:≥80％ adjustable
contents of CaSO4 2 H2O: ﹤5％adjustable
contents of soluable anhydrous gypsum: ﹤5％adjustable
