Gypsum Board Machine Manufacturer

Fire-resistant: The board core of fire-resistant paper-faced gypsum board is delivered with fire-resistant substances and a giant quantity of glass fiber. When the gypsum board is cut, many glass fibers can be viewed from the cross-section. Good-quality fire-resistant paper-faced gypsum board will use alkali-free glass fiber with true fire-resistant performance, whilst prevalent merchandise will use medium or excessive alkali glass. It is appropriate for indoor partition walls, ceilings, and decorative boards with excessive furnace resistance requirements.

Moisture-resistant: Moisture-resistant paper-faced gypsum board has a greater floor moisture resistance overall performance and is used for ceiling, partition wall, and veneer wall in rooms with high humidity.

Contact Now E-Mail Telephone WhatsApp

Product Details

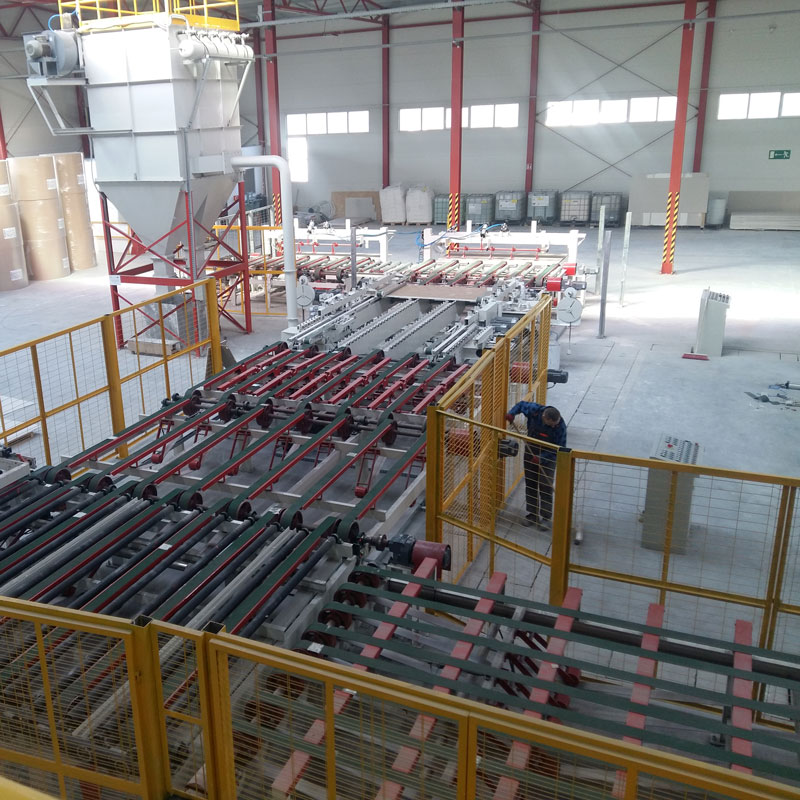

Plasterboard machinery Cutting part: including fixed length cutting machine, acceleration roller table and conveyor belt. This part of the equipment mainly completes the fixed length cutting of gypsum board. The cutting length range is 2400-6000mm. The cutting machine adopts servo cutting, and the service life and cutting accuracy are greatly improved. The transmission part and braking part adopt frequency conversion control.

Plasterboard machinery 1 transverse part: transverse plate feeding roller table, turnover machine, conveying roller table, 1 conveying belt, 2 conveying belt, approach roller table, plate feeding roller table elevator and plate discharging roller table elevator. In order to ensure that the front of the gypsum board is not scratched during transportation and drying, and the face protection paper on both sides of the back can be fully bonded with the gypsum board, it is necessary to turn the cut gypsum board in the direction of the turnover machine in the transverse part of 1, and then enter the drying kiln. 1# transverse total length: 13m

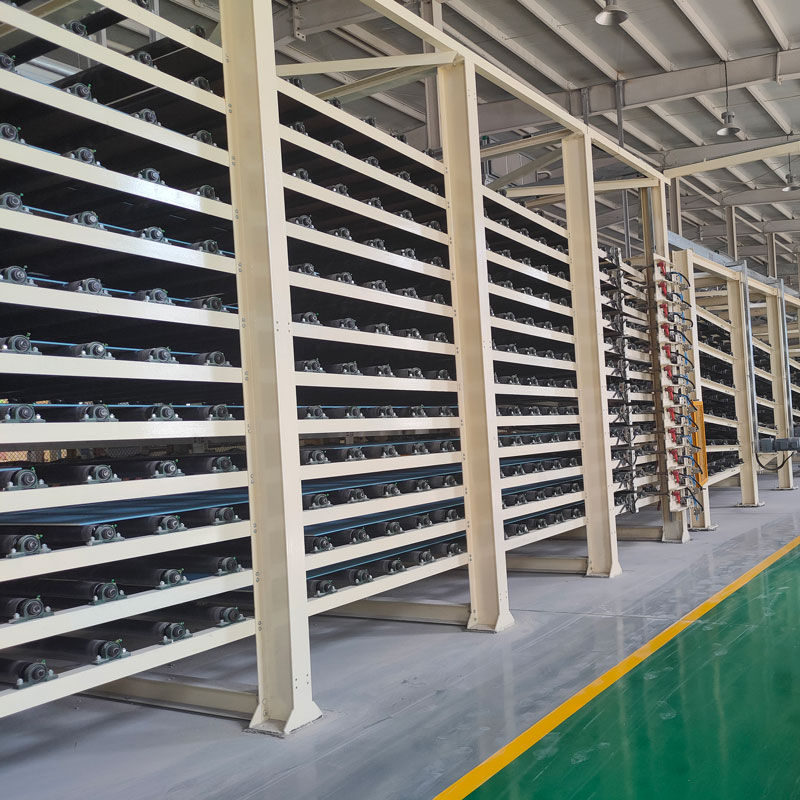

Plasterboard machinery Distribution into dryer: distributor, board feeding accelerating roller table and other equipment. After the gypsum board is cut off and turned over, it will enter the drying room layer by layer by using the distributor. The drying kiln and accelerating roller table of 40 million square meters gypsum board production line have 12 layers
