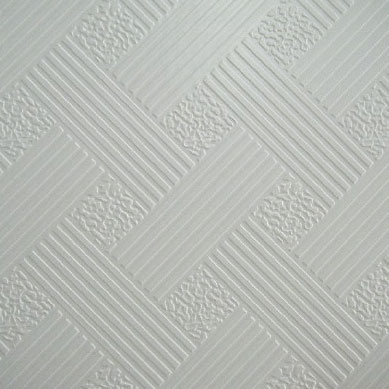

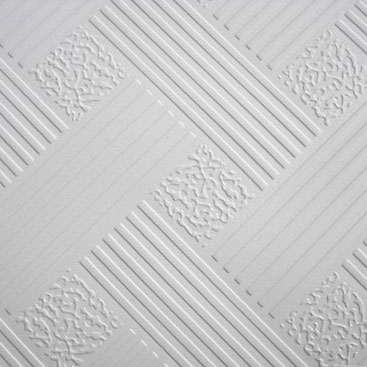

PVC Laminated Gypsum Ceiling Tiles

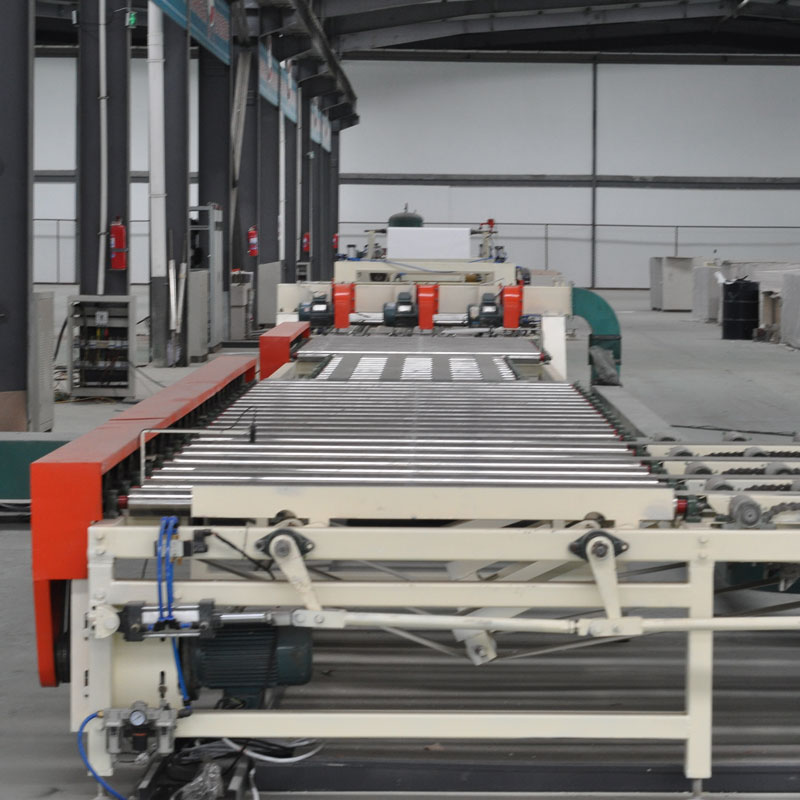

PVC laminated gypsum ceiling tilesand Gypsum tile machine Introduction

1）Automatic Sending Board Machine

Automatically sending board machine includes lift platform, automatic sending board mechanics.

 It adjust the gypsum board height by photoelectric switch, gypsum board is sent to production line by automatic mechanics, and it, adjust the speed and frequency of delivery board by photoelectric switch

2）Cleaning Machine

If there has dust on the surface of gypsum board, it will effect the lamination and product quality, so before filming, we will dust the gypsum board, the cleaning machine includes directional roller and cleaner and dust collecting.

Before cleaning, the directional roller will locate the gypsum board position, it guarantee gluing accuracy. Cleaner is composed by 2 groups of polyurethane rubber roller, Shaw hardness of 60 degrees, and with good flexibility, and can not damage the gypsum board, and it can increase of friction coefficient. The cleaning roller adopts high nylon brush, it can brush wear and cleaned thoroughly.

3）double sided gluing machine

Automatic gluing machine is composed of glue storing tank, pump, automatic gluing system, PVC plastic recycling device.

In order to adapt different environments and different patterns of PVC film, we can adjust the glue layer thickness and roller pressure. Automatic gluing system realizes automation, when glue is insufficient, the pump will automatically open, when it reaches the level requirements, the glue pump will auto stop. During the coating process, dripping glue will be collected for recycling.

4）Double side film coating machine

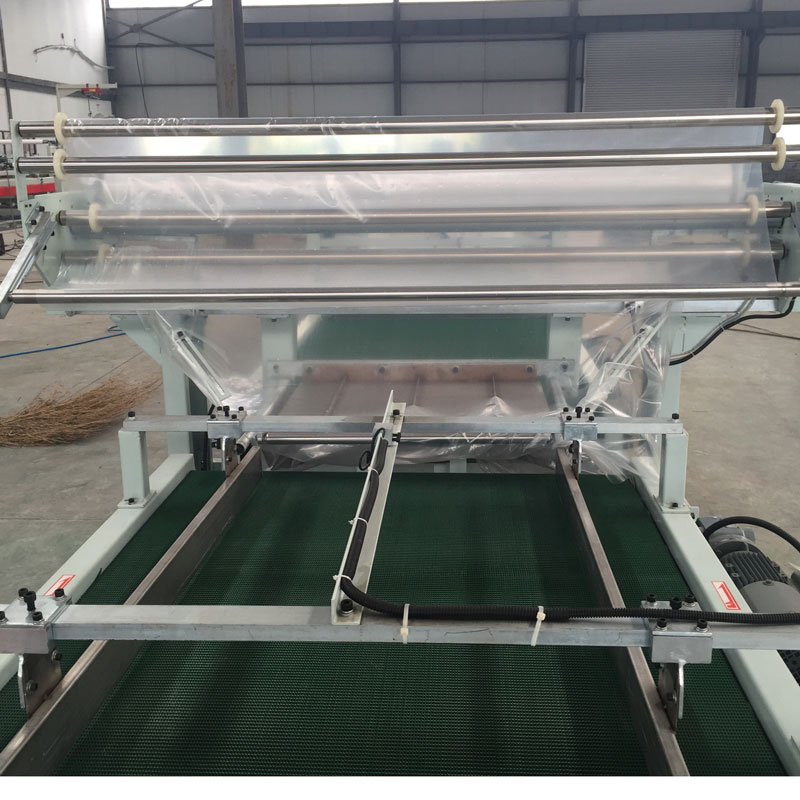

Double side film coating system includes PVC film open device, directional roller, and film coating roller and wrinkle removing roller

In order to make gypsum board sticking with PVC film and foil closely and without folds, the film opening machine has constant tension system, when the paper roll diameter changes, it will maintain the same tension. Film wrinkle removing roller film eliminates the wrinkling problem effectively. Film roll is also using polyurethane rubber with good flexibility.

5）Automatic film cutting machine

Semi automatic laminating machine adopts artificial film cutting, not only with more labor intensity, and low film cutting accuracy.Automatic film cutting machine does not need worker, with high film cutting accuracy and work efficiency,

6）Second film lamination

After cutting the film, we will use one set second film lamination machine, it adopts 2 groups of polyurethane roller, so that the PVC film and aluminum foil and gypsum board bonded more firmly.

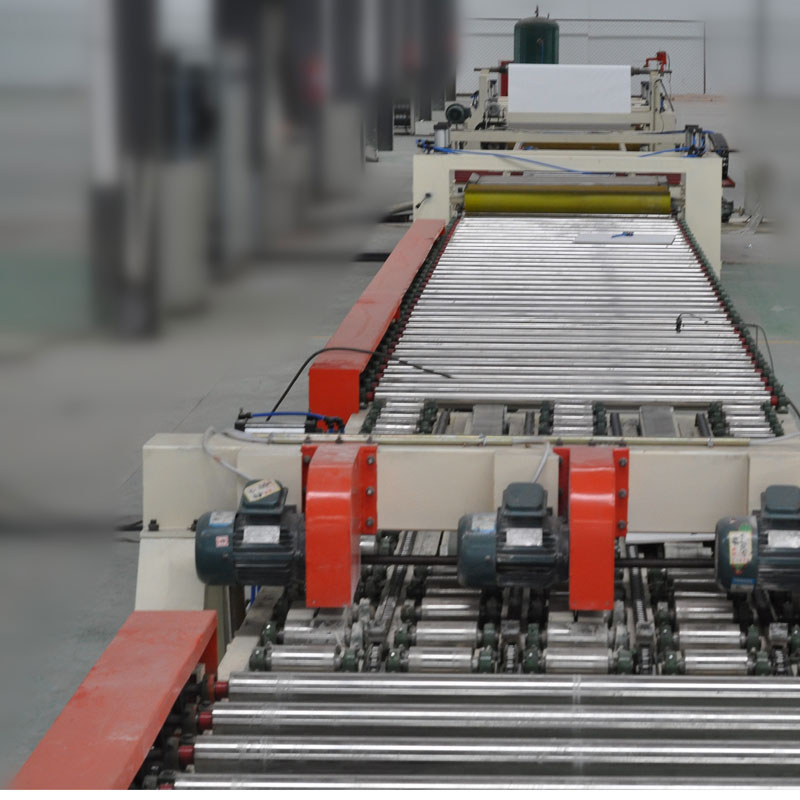

7）Accelerating Roller

According to the technological requirements, it has 2 groups of accelerated roller, it increases the PVC film and gypsum board bonding time, ensure PVC film without peeling with gypsum board.

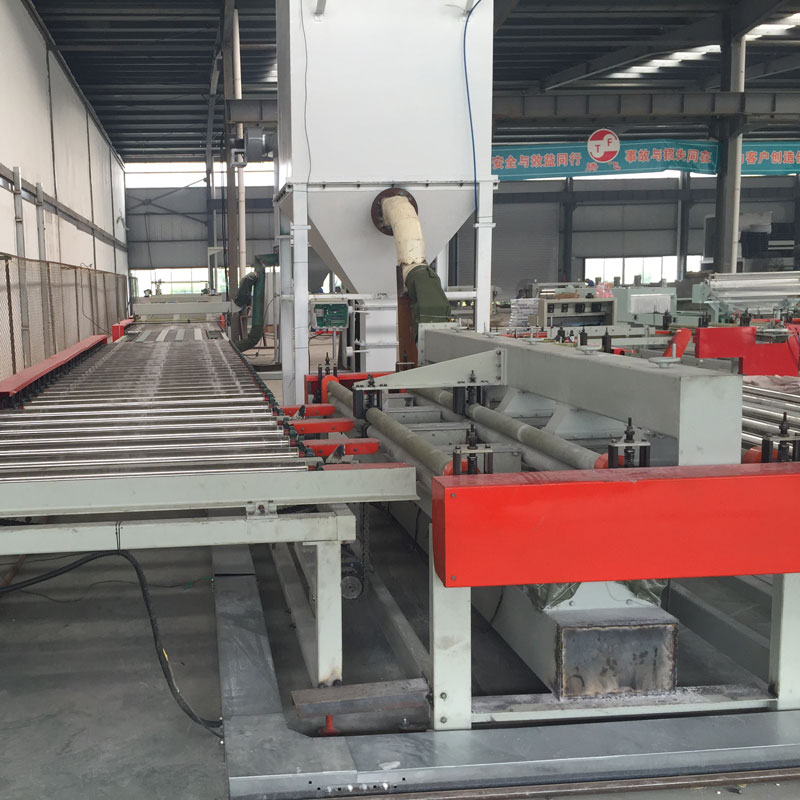

8）Longitudinal cutting.

Longitudinal cutting includes belt machine and landing device and alignment device and chain and sawing machine and dust collecting device

9）Transverse move

It includes 2 groups of accelerated roller, aligned baffle, translational belt, lifting device

10）Transverse cutting

Transverse cutting includes sawing chain, sawing machine, dust collection device, conveyor belt.

Dust collector using pulse bag type dust filter bag, 120 Bags, sectional reverse blow.

As the gypsum products market expanding, Gypsum ceiling tiles has gradually entered the market. Gypsum ceiling tiles is the large amount of new decorative material interior decoration, the product has moisture, light, sound insulation, pattern optional, nicely decorated, quick and easy construction advantages.

Domestic PVC coating equipment is semi-automatic, single-sided laminating. Low coating efficiency, poor product quality, high labor intensity, and required more workers. Equipments are imported abroad, not only expensive, and the actual production can not meet the satisfactory results. So our company developed a new automatic double-sided Gypsum ceiling tiles

Raw material instruction

1、Gypsum Board

Meet the national standard GB/T9775-2008, select the gypsum board with wedge edge, smooth surface, gypsum board standard can be  2440mm*1220mm*7.0mm-9.5mm

2、PVC decorative film

Width 1220mm, can also be customized, different color and specification according to market

3、Glue and packing material

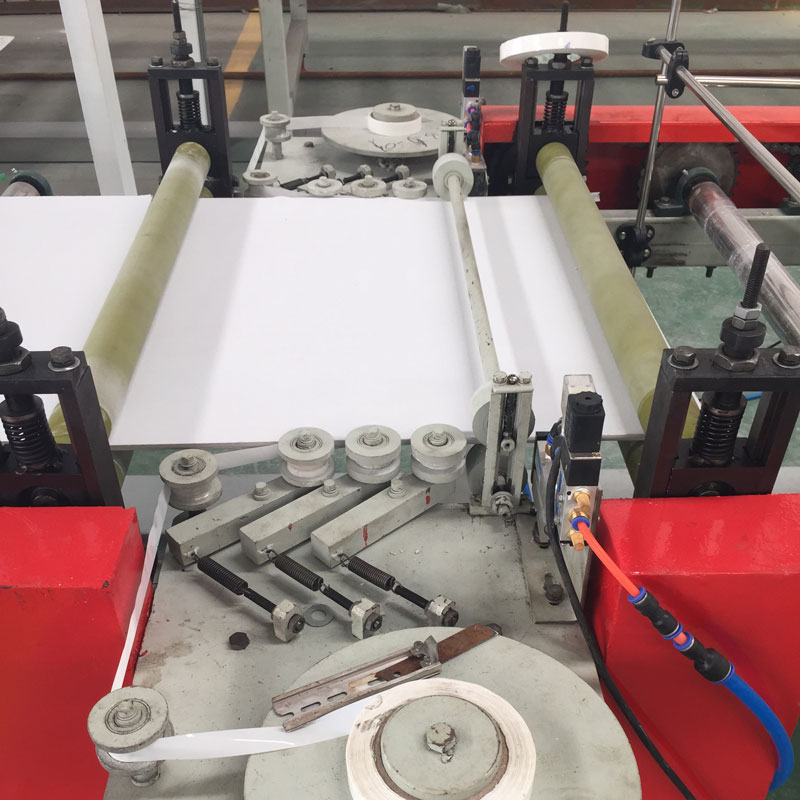

Use special coated glue, wrapping tape (2mm wide general printing trademark

The function of decorating the Gypsum ceiling tiles  as follows

1、Prevent water vapor infiltration and oil smoke scattering, and facilitate cleaning. Suspended ceilings in bathrooms and kitchens.

Shape changes space to achieve artistic creation. Like living room, dining room, bedroom

2、Hiding the lights and creating a soft and natural imitation of natural light through the reflected light of the fixtures.

3、 Hide Pipeline

4、When the roof is not level and the appearance is inclined, adjust it to a horizontal shape through the suspended ceiling.

Materials required for suspended ceilings

1.Keel material, 2. Decorative panel material

Introduction to Keel Materials

Explanation: The keel is fixed to the ceiling wall when suspended, used to support and fix the asbestos board on the outside

Keel material:

Light steel keel, wooden keel, and aluminum alloy keel

The advantage of light steel keel and aluminum alloy keel is that they are not easily deformed. The advantage of wooden keel is that it is easy to create various shapes, but the disadvantage is that it is prone to deformation and cracking.

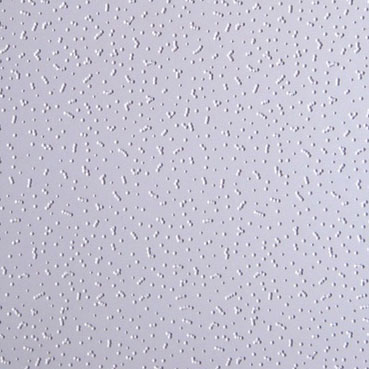

Gypsum ceiling tiles

Gypsum ceiling tiles is a new type of ceiling decoration material that is currently widely used, with good decorative effects and sound absorption performance. The commonly used ones include cast gypsum decorative board and paper decorative sound-absorbing board

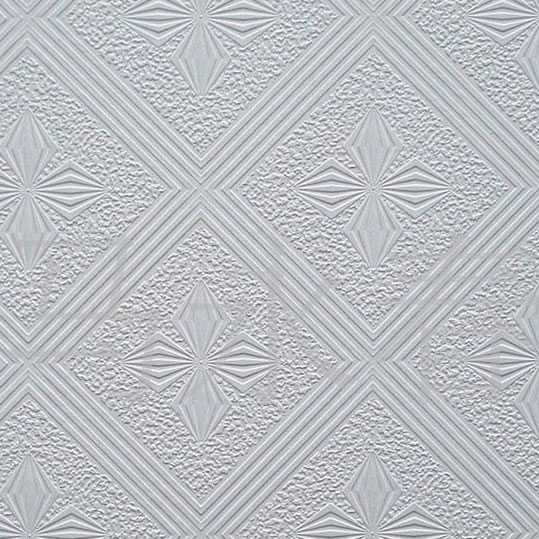

The cast gypsum decorative board has the characteristics of light weight, moisture resistance, non deformation, fire resistance, and flame retardancy. And it has the advantages of convenient construction, good processing performance, sawing, nailing, planing, and bonding. The main varieties include: various flat plates, patterned relief boards, semi perforated boards, fully perforated boards, waterproof boards, etc. The pattern relief board is suitable for the ceiling of living rooms, bedrooms, and study rooms; Waterproof boards are often used in places with high humidity such as kitchens and bathrooms.

Advantages of Gypsum ceiling tiles

1. Good sound absorption effect

Gypsum board ceiling has good decorative effect and sound absorption performance, and commonly used are cast gypsum decorative board and paper decorative sound-absorbing board. The cast gypsum decorative board has the characteristics of lightweight, moisture-proof, non deformation, and flame retardant. And it has the advantages of convenient construction, good processing performance, sawing, nailing, planing, and bonding.

2. Rich categories

The main varieties include: various flat plates, patterned relief boards, semi perforated boards, fully perforated boards, waterproof boards, etc. Patterned relief boards are suitable for ceiling hanging in living rooms, bedrooms, and study rooms: Waterproof boards are often used in places with high humidity such as kitchens and bathrooms. Paper decorative sound-absorbing board has good performance in fire prevention, sound insulation, heat insulation, and vibration resistance

3. Safe and Durable

The gypsum board ceiling is made of PVC as the raw material and processed into a groove shaped profile. It has the characteristics of light weight, easy installation, waterproof and moisture-proof, and mothproof. Its surface pattern changes greatly, and it has good performance of pollution resistance, easy cleaning, sound insulation, and heat insulation. Especially, the new process adds flame-retardant materials, making it more safe to use. It has a low cost and good decorative effect, so it occupies an important position in the ceiling materials of home decoration products, becoming the leading material for suspended ceilings in bathrooms, kitchens, toilets, balconies, and other areas

Process flow

Measurement and setting out - fixed suspension rod - installation of side keel - installation of main keel - installation of secondary keel - installation of decorative panel - installation of closing strip

Measurement and setting out: Use a laser level testing instrument to measure the overall horizontal and vertical line in the room, and then use ink lines to pop up the ceiling elevation control line along the wall (column) based on the far infrared ray obtained by the horizontal instrument. The purpose is to ensure that all subsequent suspended ceilings are carried out in accordance with this horizontal line to ensure the verticality of their construction
